ARCHITECTURAL MEMBRANE
Customers may select from an extensive variety of membrane colors to suit the structure's application, physical location, and to complement corporate branding. Custom color requirements can be met through special orders. The clean, bright, highly tensioned finish of our structure provides an ideal display area for graphic treatments.
FIRE CERTIFICATION
The architectural membranes are the result of extensive research, development and on-site testing. They possess exceptional fire retardant and UV resistance capabilities. The Seaman 9319 premium membrane is BS 7157 certified and the insulated walls/ceilings achieve an "AA" rating for BS 476 Part III.
The membranes pass the following fire tests as outlined in North American building codes; California State Fire Marshall, UBC 31-1, NFPA 701, ASTM-E-84 and the Canadian standard ULC-S_109 and ULC-S-102.2-03.
MEMBRANE CHOICES
OPTION 1 - Polyurethane coated architectural membrane
- Weighs approximately 18 oz. per square yard.
- Proven polyurethane top coating extends membrane life.
- Available from inventory in opaque white, tan or gray.
- Additional colors available by special order.
- 12-year pro-rata guarantee.
Available Colours* - Shell White, Desert Sand and Granite Gray.

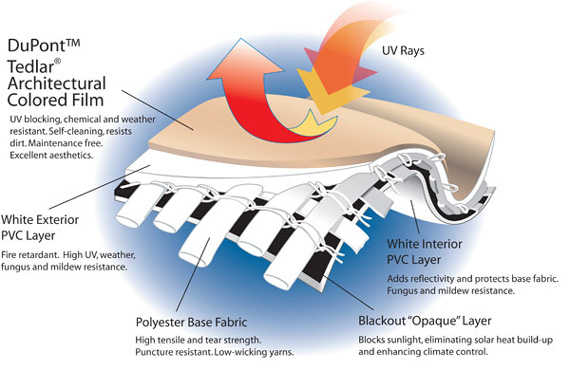

OPTION 2 - Tedlar™ Dupont Tedlar™ coated architectural membrane.
- Weighs approximately 24 oz. per square yard.
- Tedlar™ exterior protective film guards against UV.
- Guards against airborne contaminants and dramatically extends membrane life.
- Available in a large selection of colours.
- 20-year pro-rata guarantee.
Available Colours* - Shell White, Concord Cream, Desert Sand, Granite Gray, Salem Blue, Baybury Green, Mediterranean Olive, Georgian Gold and Brownstone Red.
*Additional colors available by special order.
Color samples cannot be considered totally accurate matches.
Please refer to the actual color chart when ordering.
STRUCTURE FEATURES
STRUCTURE ACCESSORIES
- Personnel Doors & Hoods
- Rolling Service Doors
- Vestibules & Canopies
- Connecting Corridors
- Windows
- Cargo Doors
- Hangar Doors
- Graphics
- Ventilators & Framed Openings
- Skylights
